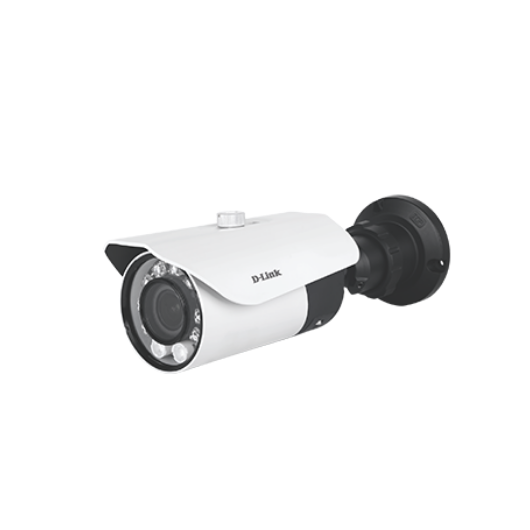

D-Link DCS-F4724 | 4MP Outdoor Varifocal Bullet Network Camera | 2592×1520 @30fps | IR Range up to 25m | Motorized 2.8-12mm Lens | Audio Support
The D-Link DCS-F4724 4MP Outdoor Varifocal Bullet Network Camera delivers high-definition security with a 2592×1520 resolution at 30fps. Featuring a motorized 2.8-12mm lens, 25m IR range, IP66 weatherproofing, and smart features like De-fog, Corridor Mode, and Region of Interest, this camera ensures optimal surveillance in all conditions. Supports SD storage up to 128GB and audio input/output.
The D-Link DCS-F4724 4MP Outdoor Varifocal Bullet Network Camera is engineered for professional-grade surveillance, offering crystal-clear video with a high 2592×1520 resolution at 30fps. Its motorized 2.8-12mm varifocal lens allows users to adjust zoom and focus remotely for precise monitoring, making it perfect for both wide-area and close-up surveillance.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DCS-F4724 is equipped with powerful infrared night vision (up to 25m), this camera ensures reliable 24/7 monitoring, even in complete darkness. The IP66-rated weatherproof housing protects against rain, dust, and extreme temperatures, making it ideal for outdoor environments.
D-Link DCS-F4724 has advanced features such as Corridor Mode and Region of Interest (RoI) allow for optimized video coverage, reducing bandwidth and storage usage. The Smart De-fog technology improves visibility in foggy or low-contrast conditions, enhancing overall image clarity.
D-Link DCS-F4724 comes with local SD storage (up to 128GB), the DCS-F4724 offers flexible recording options without needing a dedicated NVR. Additionally, audio input/output support enables sound recording and two-way communication for enhanced security applications.
D-Link DCS-F4724 is ideal for homes, businesses, parking lots, and industrial sites, the D-Link DCS-F4724 is a powerful outdoor surveillance solution with advanced imaging technology and intelligent security features.
| Category | Details |
|---|---|
| Image Sensor | 1/3″ 4 MP Progressive Scan Exmor CMOS |
| Lens | Motorized lens, 2.8-12mm focal length |
| Aperture | F2.2 |
| IR Illumination | Up to 25 meters, Smart IR support |
| ICR Filter | Built-in Infrared-Cut Removable (ICR) Filter module |
| Minimum Illumination | Color: 0.05 Lux; IR ON: 0 Lux |
| Shutter Speed | 1/5 to 1/20000 seconds |
| Angle of View | Horizontal: 95° ~ 35°; Vertical: 48° ~ 20° |
| Minimum Object Distance | 0.3 meters |
| Digital Zoom | 10x |
Camera Housing
| Category | Details |
|---|---|
| Weatherproof Rating | IP66 compliant |
| Sunshield | Included |
Image Features
| Category | Details |
|---|---|
| Image Size/Quality | Configurable |
| Frame Rate | Configurable, up to 30 FPS |
| Privacy Mask Zones | Up to 4 zones |
| Text Overlays | Time stamp and customizable text |
| Image Adjustments | Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance |
| Rotate/Corridor Mode | Supported |
| Digital Noise Reduction | 2D and 3D technology |
| ROI Zones | Up to 8 configurable zones |
| Image Enhancement | WDR (Wide Dynamic Range), HLC (Highlight Compensation) |
Video Compression
| Category | Details |
|---|---|
| Compression Formats | H.264, H.265, MJPEG |
| Multicast Streaming | Supported |
| Still Images | JPEG format |
Video Resolution
| Category | Details |
|---|---|
| Main Stream | 2592×1520, 2560×1440, 2304×1296, 1920×1080 |
| Second Stream | D1 to QVGA |
External Device Interfaces
| Category | Details |
|---|---|
| Ethernet Port | 10/100 BASET-X with PoE (802.3af) |
| Audio | 1 channel Audio In, 1 channel Audio Out |
| BNC Output | Supported |
| Storage | Micro SD/SDHC/SDXC slot (up to 64GB) |
Network Protocols
| Category | Details |
|---|---|
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, HTTP/HTTPS, PPPoE, UPnP, RTP/RTSP/RTCP, Multicast |
| Compliance | ONVIF compliant |
Security
| Category | Details |
|---|---|
| User Protection | Administrator and user group protection |
| Authentication | HTTP and RTSP authentication |
| Encryption | HTTPS for web access |
| Access Control | Remote client access control |
Event Management
| Category | Details |
|---|---|
| Motion Detection | Supported |
| Alerts | SMTP client notifications |
| Event Notifications | Email alerts with snapshots |
Remote Management
| Category | Details |
|---|---|
| Web Interface | Accessible via web browser |
| Snapshots | Supported |
OS and Mobile Support
| Category | Details |
|---|---|
| Operating Systems | Windows 7/8/XP/Vista/2000 and higher, Android |
DCMS System Requirements
| Category | Details |
|---|---|
| Operating System | 32-bit: Windows XP Pro SP3, Vista SP1, Win 7 SP1; 64-bit: Win 7 SP1, Win Server 2008 R2 |
| Software Function | Control and manage up to 64 channels |
Physical Specifications
| Category | Details |
|---|---|
| Weight | 830g |
| Power Supply | DC 12V & PoE (802.3af) |
| Power Consumption | 3W (IR OFF), 5.5W (IR ON) |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 0% to 90% RH |
| Certifications | CE, FCC |
| Dimensions | 80.3 × 264.5mm |
