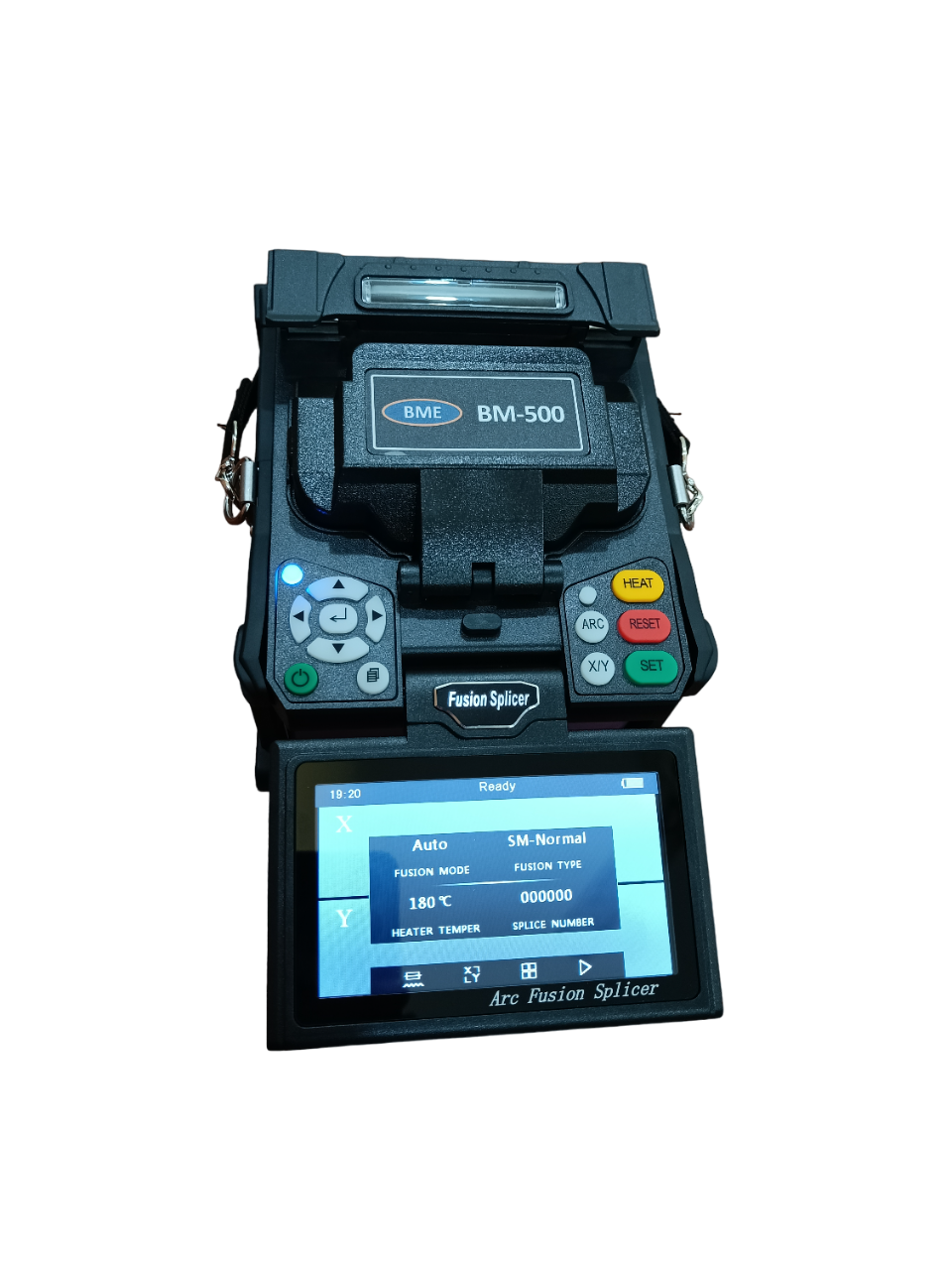

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision - Image 3

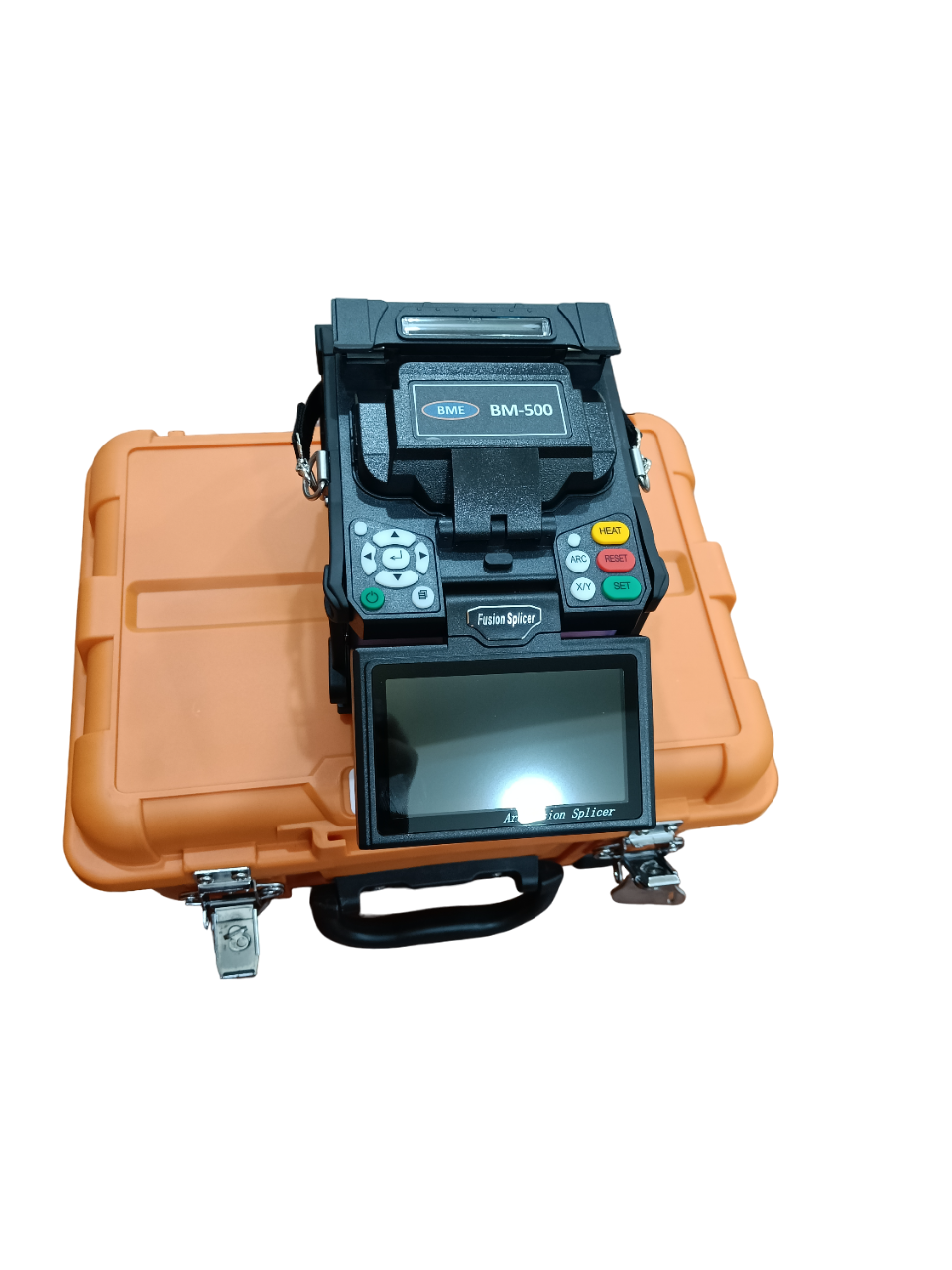

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision - Image 5

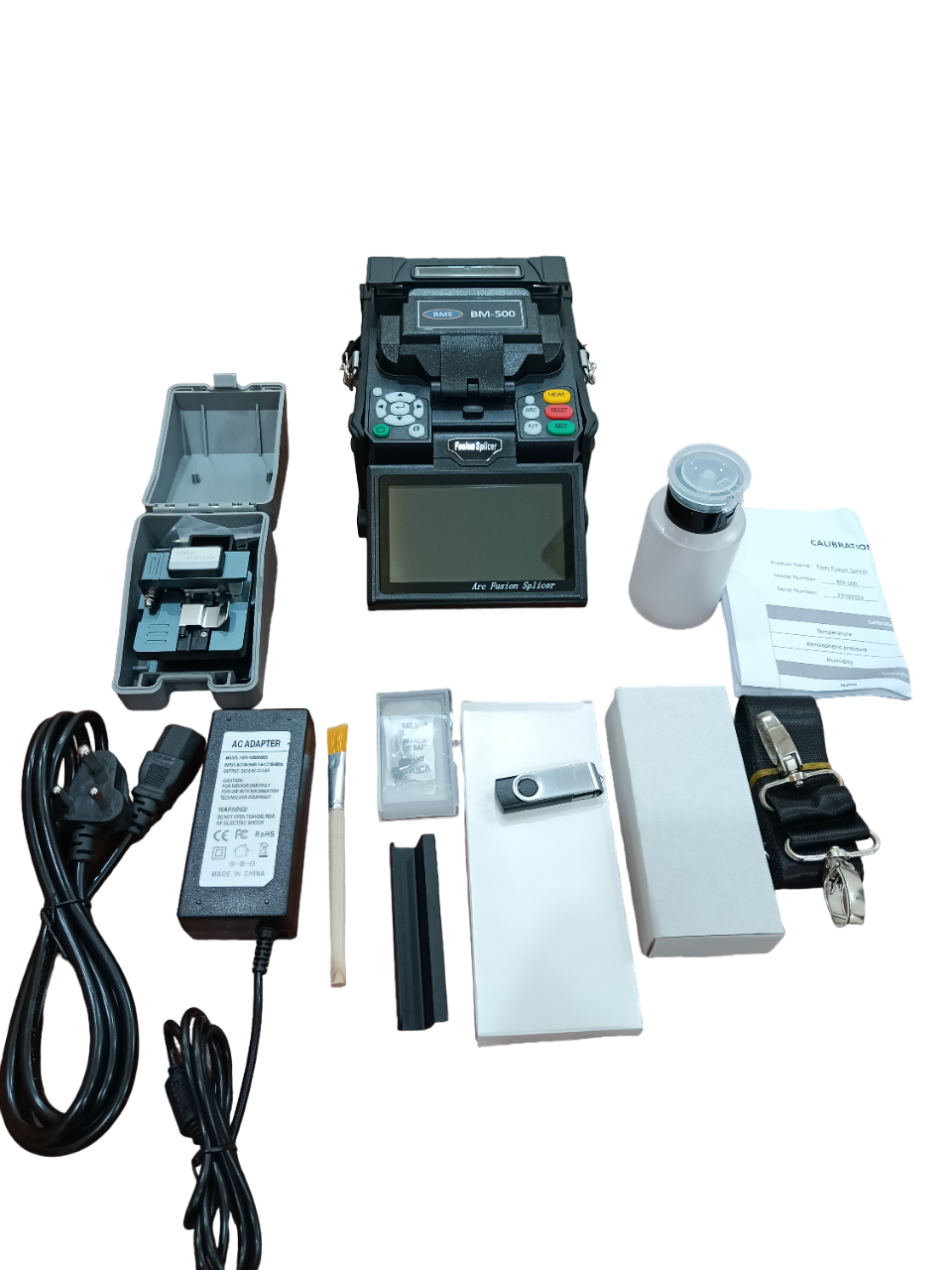

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision - Image 6

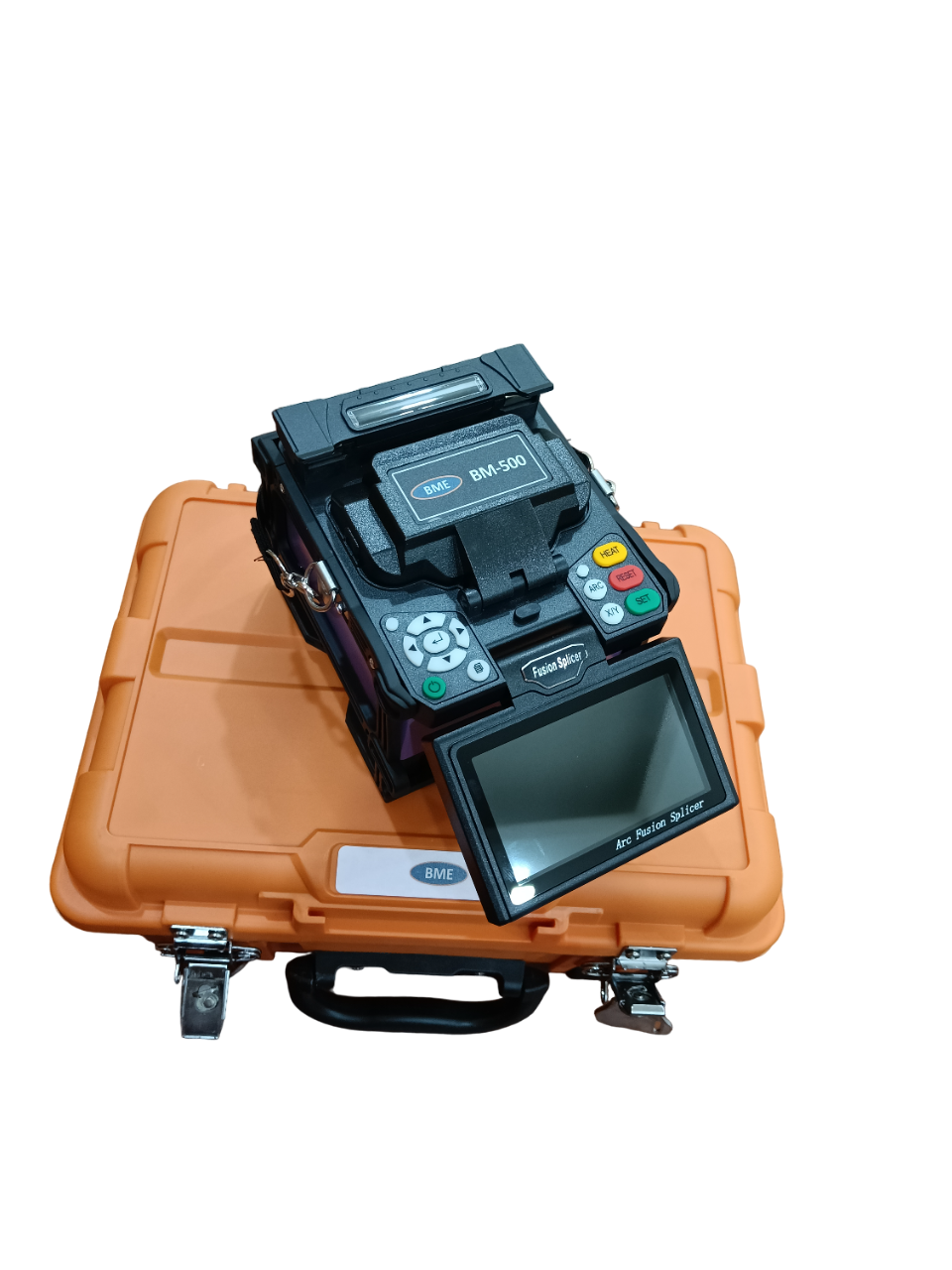

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision - Image 7

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision - Image 8

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision

Original price was: ₹89,000.00.Current price is: ₹67,500.00.

Model Name/Number	BM-500
Dimension	149 x 120 x 130 mm
Interface	12V DC Power Input, USB2.0
Altitude	0 To 5000 m
Cladding Diameter	80 -150 um
Applicable Fiber	SM, MM, DS, NZDS
Power Supply	Adapter – AC100-240V(50/60HZ), Output – DC11- 13.5V
Battery	2.25 kg
Operating Humidity	0 To 95 %
Operating Temperature	– 10 To 50 Degree C
Electrodes Times	3000 Times
Coating Diameter	100 – 1000 um

Categories: Fiber Testing Measurements Devices, SPLICING MACHINE Tags: Best BME fiber fusion splicer BM-500, BM-500 Core Alignment Splicing Tool, BM-500 Fiber Fusion Splicer, BM-500 fiber splicing time & battery backup, BM-500 FTTH Splicer by BME, BM-500 Handheld Fusion Splicer, BM-500 High Precision Fusion Splicer, BM-500 splicer alignment accuracy, BM-500 splicer feedback, BM-500 splicer review, BM-500 splicer review / feedback, BM-500 Splicing Machine with Touchscreen, BM-500 vs BM-97 Fusion Splicer, BME BM-500 Core-to-Core Fiber Splicer, BME BM-500 Fiber Optic Cable Splicer, BME BM-500 Fiber Splicer Machine Price, BME BM-500 Fusion Splicer, BME BM-500 Optical Fiber Splicing Machine, BME BM-500 splicer software update, BME BM-500 Splicer Specifications / Datasheet, BME BM-500 Splicing Machine, BME BM-500 vs Fujikura, BME BM-500 vs INNO, bme spliceing, BME SPLICING MACHINE, FTTH Fiber Splicer, How to use BME BM-500 fusion splicer, SPLICING MACHINE, Splicing Machine BM-500 Brand: BME

Description
Reviews (0)

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision

We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.

Features

*Handheld, Small, Light
*Industrial standard screen
*Various colors are available
*Core to core digital alignment
*8s splicing stime,26s tube heating time
*5800mAh and pluggableLi-battery, Typical 200cycles
*ARC calibrated bytemperature and air pressureautomatically
*Automatically switching on windshield andheater in 4steps
*Apply to bare fibers, indoor cablesand jumper wiressplicing

Data Sheet

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count	Single
Applicable fiber dimensions	Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	8 seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5800mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.9kg including battery
